Pixel Waterfall

Pixel Waterfall
Simplex Multi-Apartment · Jolshiri Abashon, Sector 16, Dhaka · 2023

The name came first. Before a single line was drawn, the client had already decided what this building would be called, and in committing to that name, had set the architects a challenge that few briefs articulate so directly: make the architecture feel like its name.

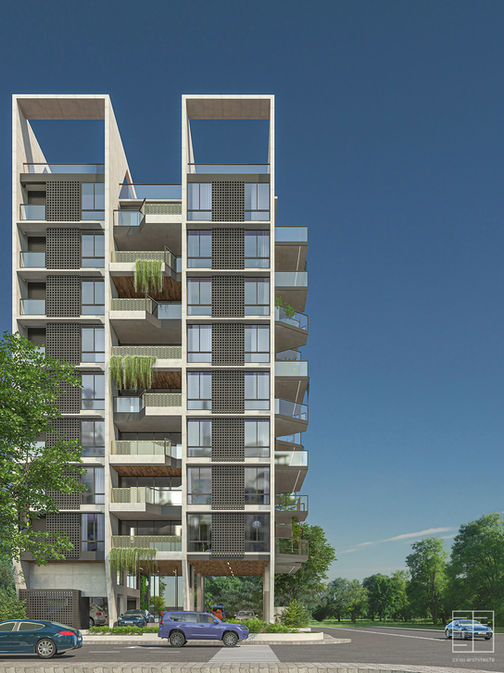

The site is a corner plot on Road 502, Sector 16 of Jolshiri Abashon. The eastern elevation, facing the street, carries the project's most considered facade gesture. A system of deep verandas, each one angled differently from the floor above and below it, runs the full height of the building in a carefully harmonised composition. The angle of each veranda is calibrated so that the geometry alone, without any additional shading device, intercepts the low morning sun from the east. In a corner building with full eastern exposure, this is a significant passive strategy built entirely into the form. But the effect is also unmistakably poetic. Viewed from the street level looking upward, the successive angled planes undulate across the facade in a rhythm that reads, abstractly, as a wave on water, each slab tilting slightly past the one below it in a fluid, continuous movement. The building does not fall; it flows.

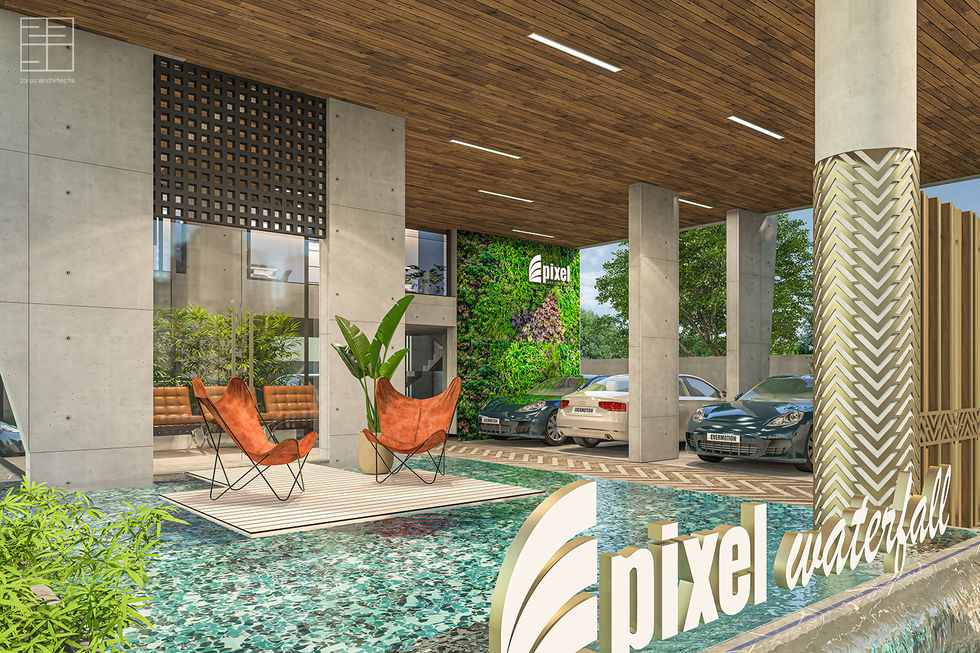

At ground level, the name resolves itself differently. A generous waterbody occupies the arrival court, its still surface held beneath the building's cantilevered base and shaded by a double-height canopy above. Timber-slatted ceilings warm the underside of the structure, a perforated brick screen filters light from the street, and a planted green wall brings vertical vegetation into the lobby zone. The water at ground level is the literal anchor of the building's identity, the element from which its name is drawn and around which its arrival experience is built.

The south side opens outward with wide family terraces at each level, planted and accessible, facing the most comfortable solar aspect and providing residents with genuine outdoor rooms. The overall massing is divided and stepped so that the upper levels appear to lift slightly from the floors below, reinforcing the sense of movement and lightness that runs through the entire composition. The building volume does not sit on its site so much as rest on it lightly, the way a wave rests on water before moving on. At 2,322 square metres across a 5-katha site, Pixel Waterfall is a building that takes its brief from a single word and delivers it in concrete, glass, and carefully considered geometry.
